On a workstation, almost everything can be adjusted. The seat moves up and down, the seat pan slides forward, the keyboard moves. The desk, however, doesn't move, and neither does the display panel if its stand doesn't allow it.
This is why the stand determines the position of the monitor more surely than the furniture: it is the only part that can bridge the gap between the height of the desk and eye level. However, not all stands offer the same movements, and the technical specifications are often vague on this point.
Two pieces of information are enough to decide when looking at a product sheet: the list of movements actually offered, and the presence of VESA compatibility, which leaves open an alternative solution.
The four movements of a monitor stand
A monitor stand can offer up to four adjustments, rarely all present at the same time.
- Height adjustment: the display panel slides vertically along the column. This is the most useful movement and often absent from entry-level models.
- Tilt: the display panel tilts forward and backward by a few degrees. Present on almost all monitors, including the simplest ones.
- Swivel: the display panel rotates left and right around its vertical axis, without moving the stand. Useful for showing the screen to someone.

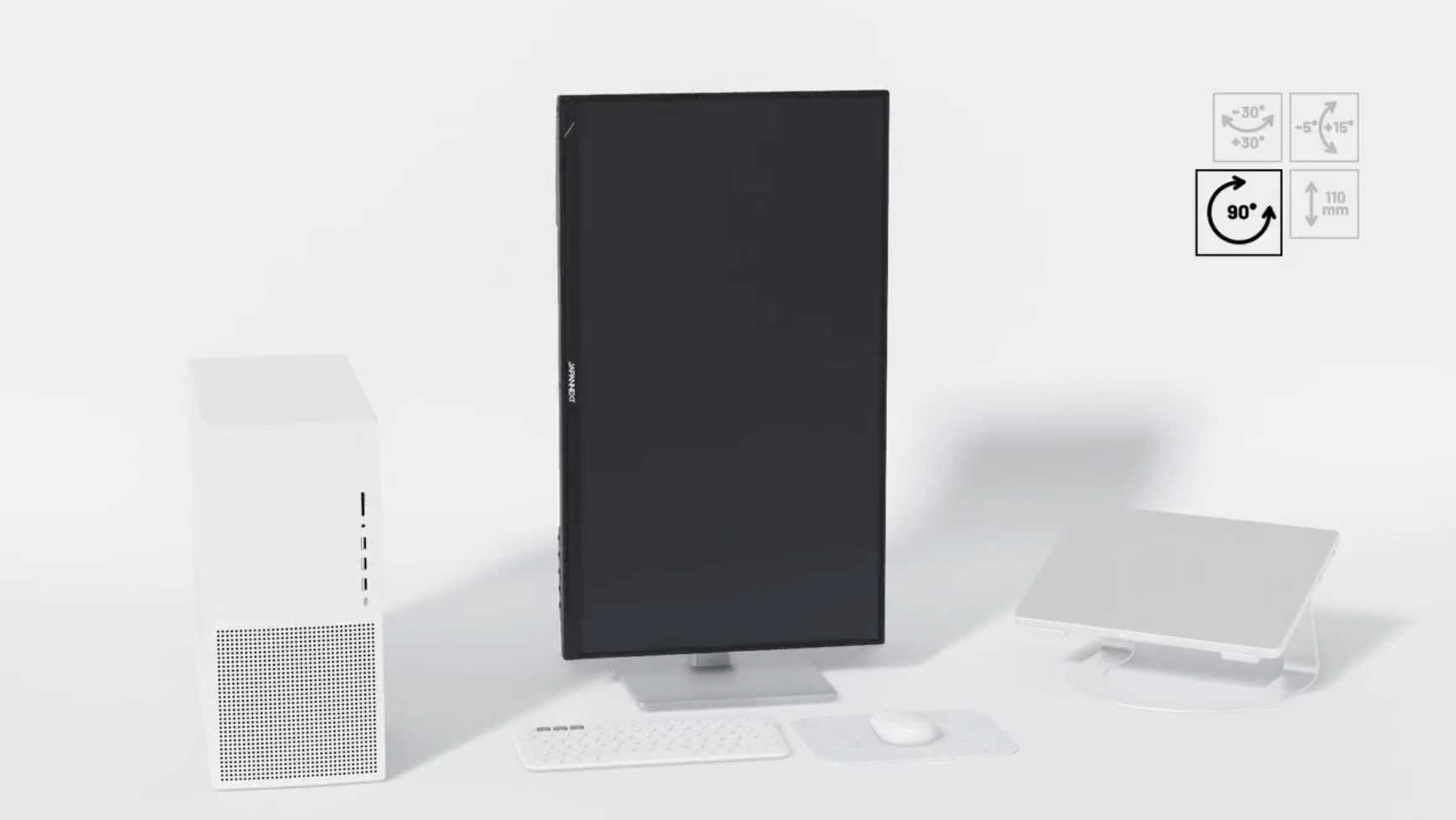

- Pivot: the display panel rotates 90 degrees to switch to vertical orientation. This requires the stand to allow the movement and the height to be sufficient so that the corner of the display panel does not touch the desk.
An entry-level monitor generally only offers tilt. An ergonomic monitor offers all four. Between the two, all combinations exist, and this is precisely what the technical specifications should allow you to verify.
Reading a technical specification without error
The formulations used on product sheets are short and you need to know what they cover.
"Adjustable tilt" refers only to the front-back tilt. This is the minimum, and this mention alone generally means that the height is not adjustable. An example from the catalog references: the product sheet for the 27-inch 4K UHD IPS Office Monitor indicates "adjustable tilt and VESA 100x100 mounting."
"Adjustable height" or "height adjustable" indicates the presence of vertical adjustment. The product sheet for the 37.5-inch UWQHD+ IPS Curved Monitor thus mentions "adjustable tilt and height."
"Articulated ergonomic stand" refers to a stand offering all movements. In the catalog, the 21.5-inch Touch Office Monitor with KVM switch and 65W USB-C charging explicitly carries this mention.
The useful reflex is to read this line before the resolution and diagonal: these last two can be remedied by changing models, the position of the display panel is endured every day.
The VESA standard, and why it appears on the product sheet
VESA here refers to a standardized mounting pattern, present on the back of most monitors. It consists of four screw holes arranged in a square, whose spacing is expressed in millimeters.
For desktop diagonals, the dominant format is 100 x 100 mm, i.e., four screws spaced 10 cm apart. Large formats go up to 200 x 200, 300 x 300 or 400 x 400 mm, the spacing increasing with the weight to be supported.
The advantage of this standardization is interchangeability: a VESA-compatible monitor is not tied to its original stand. The product sheet for the 27-inch WQHD White Office Monitor states it directly, indicating that the VESA 100x100 mounting "supports arm or wall installations."
This is the information to note at the time of purchase, even if you don't plan to use it: it determines what will be possible later.
When the original stand is not enough
Three situations come up regularly, and none can be solved by changing screens.
The display panel remains too low even in the high position. This happens on tall desks and on models with short columns. Raising it with a support placed under the stand is the simplest solution, and it does not require any disassembly.
The desk lacks depth. A stand occupies a footprint on the desk that pushes the display panel forward, whereas setback is precisely what makes a large screen comfortable. Freeing up this footprint can gain several centimeters of distance.
The workspace must remain completely clear. This is the case for shared workstations and areas where the desk is used for other purposes outside of working hours.
In these three cases, the VESA compatibility mentioned above is what opens up an alternative to the supplied stand. The first thing to check is therefore the spacing supported by the screen, then the weight of the display panel, both of which must correspond to what the intended mounting accepts.
Large format displays have their own mounts
From 32 inches, the question changes: the mass and bulk make the desktop stand unsuitable, and mounting becomes the rule rather than the exception.
The JAPANNEXT catalog offers four mounts dedicated to these diagonals, each with its own compatibility range.
- Tilting wall mount for large format screens, in two versions: one covers VESA patterns from 75 x 75 to 600 x 400 mm, the other up to 200 x 200 mm.
- Ceiling mount for large format screens 32 to 75 inches, compatible up to 400 x 400 mm.
- Wheeled stand for large format screens, with universal VESA compatibility from 100 x 100 to 400 x 400 mm, for uses where the screen needs to be moved between rooms.
These references are listed in the accessories collection. Reading their VESA range is the primary compatibility criterion, even before the maximum load capacity.
JAPANNEXT monitors with adjustable stands
Several models in the catalog explicitly document their stand adjustments.
- 21.5-inch IPS Full HD Touch Office Monitor, KVM switch, USB-C with 65W charging, articulated ergonomic stand, reference JN-IPS2152FHDR-C65W-FLD-T. A refurbished version is also available.
- 28.2-inch IPS 4K UHD+ Office Monitor, reference JN-282i4KP-HSP: tilt adjustment and VESA 100 x 100 compatibility.
- 37.5-inch IPS UWQHD+ Curved Monitor: adjustable tilt and height, VESA compatibility.
- 34-inch IPS UWQHD White Curved Monitor, reference JN-IPS34Q-HC6-W: height adjustment.
- 27-inch IPS WQHD 300Hz Gaming Monitor, reference JN-IPS27G300Q-HSP: ergonomic stand.
To go further: mounting, raising, and display panel
- Monitor wall mount: choosing the mount based on the wall type, a topic not covered in this article.
- Wooden monitor stand: raising the screen with a placed support, an alternative without disassembly when the display panel is too low.
- Understanding different monitor panels: viewing angles, which become crucial as soon as the panel is not exactly facing your gaze.
FAQ: PC Monitor Stand and Mount
How high should I place my monitor?
The most commonly applied geometric rule places the top of the display panel at eye level, with the screen then slightly tilted backward. This position can only be achieved if the stand offers height adjustment, or if the display panel is raised by a support.
What is the VESA standard on a monitor?
It is a standardized mounting pattern located on the back of the display panel, consisting of four screw points in a square. Its spacing is expressed in millimeters: 100 x 100 on most desktop monitors, up to 400 x 400 on large formats.
How do I know if a monitor is VESA compatible?
The information is on the technical specifications, in the form of a mention such as "VESA 100x100 mounting", and can be physically verified on the back of the display panel by the presence of the four screw points. Some specifications directly state that the monitor supports arm or wall installations.
Are all monitors height-adjustable?
No. Tilt is almost always present, height adjustment much less so. A specification that only mentions adjustable tilt generally describes a fixed-height stand.
What if the stand doesn't go high enough?
There are two options. Raise the entire setup by placing the monitor and its stand on a raised support, without disassembling anything. Or use the VESA pattern on the display panel to mount it differently, first checking the supported spacing and the weight of the monitor.
